Falc Italian made agricultural machinery includes rotary hoes to 350hp and shredders and mulchers to 400hp for full strength farming in Australia.

Falc Farm Machinery

CR Series Rotary Hoe


Solidly built and designed for use by both hobby and professional farmers, the Falc CR series rotary hoe features a 70hp, two speed gearbox, chain side drive transmission and is ideal for use in market gardens, horticultural and viticultural applications. Available in working widths of 1.5m, 1.6m and 1.8m, the CR is a versatile, general purpose rotary hoe.

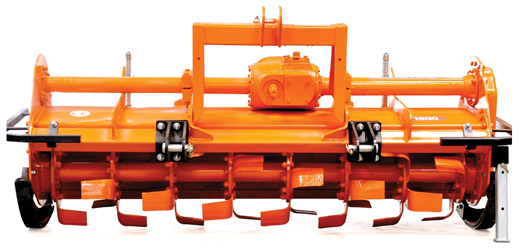

Falc CR Series Rotary Hoe

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE CR SERIES ROTARY HOE

CONSTRUCTION

CR Series Construction
  • Modular frame with 70mm x 70mm x 5mm square front support tube for strength and the mounting of the tractor attachment brackets
  • Strong, fabricated headstock
  • 3pt linkage mounted with adjustable clevis hitch and Category2 pins on the lower brackets
  • Centrally mounted or adjustable to 100mm offset to the RH side
  • Coiled spring adjusters on the rear trailing board for tilth control

TRANSMISSION

CR Series Transmission
  • 540 rpm PTO
  • Drive shaft with 1 3/8” 6 spline yoke and fitted with friction plate safety clutch
  • 70hp, two (2) speed gearbox
  • Chain side-drive (liquid grease lubricated)

ROTOR AND BLADES

CR Series Rotor and Flail
  • Rotor Speeds:
    • Standard: 195 & 218 rpm at 540 rpm PTO
  • 3 blade rotor pattern i.e. 3 x LH & 3 x RH blades per flange
  • ‘L’ shaped blades fitted as standard

SAFETY

CR Series Safety
  • Complies with all CE (European) safety standards
  • Fully covered drive shaft, clutch and gearbox input shaft
  • Front and side protection bars to prevent operator or by-stander contact with moving parts
  • Rear trailing board protects against contact with the blades and the rotor from the rear of the machine
  • Front mounted parking stand

DEPTH CONTROL

CR Series Depth Control
  • Left and right hand adjustable depth control skids.


SPECIFICATIONS

CR 1500
CR 1600
CR 1800
Working Width (m)
1.52
1.62
1.82
Overall Width (m)
1.64
1.75
1.97
No. of Blades
36
36
42
Weight (kg)
457
471
495
Tractor Power (hp)
40-70
50-70
50-70

BROCHURE

Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
