Zenit Hydraulic Offset Mulcher and Shredder


A low bodied shredder with a 90hp gearbox and working widths from 1.6m to 3.0m, the Zenit ‘Fixed’ is centrally mounted only and will comfortably handle applications such as pasture topping, roadside and general grass and vegetation maintenance, as well as mowing and mulching in vineyards and orchards.

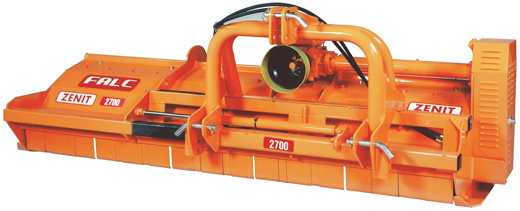

Zenit Fixed Shredder

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE ZENIT MULCHERS & SHREDDERS

CONSTRUCTION

Construction
  • Low profile design with 4mm body plate thickness and 8mm side plates.
  • Fixed, central position 3pt linkageclevis mounting with Category 2 pins.
  • Strong fabricated headstock.
  • Removable rear doors for ease of maintenance.
  • Optional 2.5mm replaceable wear and tear sheet.

TRANSMISSION

Transmission
  • 540 rpm PTO.
  • 90hp gearbox with internal free-wheeling clutch.
  • Drive shaft with 1 3/8” 6 spline yoke.
  • ‘V’ belt side drive: 4 x belts on 1600-2300 & 5 x belts on 2500-3000

ROTOR

  • Rotor tube:Æ193.7mm with 10mm wall thickness.
  • Rotor Speeds:
    • 2250 rpm on the 1600-2300 models.
    • 1822 rpm on the 2500-3000 models.
  • Hammer Tip Speeds:
    • 53m/sec on the 1600-2300 models.
    • 43m/sec on the 2500-3000 models.
  • Forged hammer flails fitted as standard and fastened by Æ 25mm hardened pin & split pin.
  • Single comb counter-blade

SAFETY

  • Complies with all CE (European) safety standards.
  • Closeable rear door.
  • Steel front safety flaps across the full intake width.
  • Fully guarded ‘Vee’ belts, drive shaft and clutch.

HEIGHT CONTROL

  • Standard fitment:
    • Fixed LH & RH side plate protection skids.
    • Rear Roller:Æ193.7mm with 5mm wall thickness.

OPTIONS

Rear pneumatic wheels
  • Options:
    • Dual Rear Pneumatic Wheels.
  • Dual Front Steel Wheels.

Zenit Optional Rear Rake Tynes

  • Rear Rake Tynes. The rear support bar is pre-drilled for the mounting of Ø 25mmrake tynes.
  • Replaceable, 2.5mm Wear and Tear Sheet.

SPECIFICATIONS

ZENIT 1600
ZENIT 1800
ZENIT 2100
ZENIT 2300
ZENIT 2500
ZENIT 2700
ZENIT 3000
Working Width (m)
1.59
1.77
2.13
2.31
2.49
2.67
3.03
Overall Width (m)
1.86
2.04
2.40
2.55
2.76
2.94
3.30
No. of Flails
16
18
22
24
26
28
32
Weight (kg)
618
678
758
808
868
948
1048
Tractor Power (hp)
50-90
50-90
50-90
60-90
60-90
60-90
60-90

BROCHURE

Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
