    Falc Farm Machinery

    Kratos 200 hp Power Harrow



    The Kratos is a 200 horsepower rated power harrow available in working widths from 3 to 4 metres. The professional machine is the best power harrow for large growers or faming contractors. Ideal for seed bed preparation through to pasture renovation.

    Falc RU Rotary Tiller

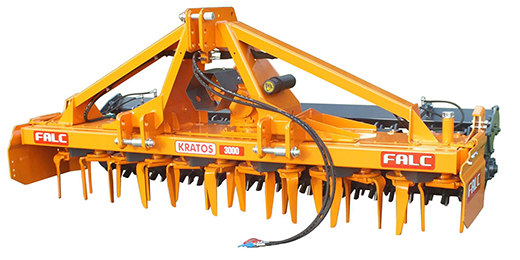

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE KRATOS POWER HARROW

    CONSTRUCTION

    Kratos Construction
    • 3pt linkage (centrally) mounted
    • 'Floating' clevis hitch with Cat 2 pins (Cat 2/3 pins on the 3500 & 4000)
    • Rear PTO shaft for ancillary equipment
    • Rear leveling bar with manual 'screw' type adjustment system

    TRANSMISSION

    • Drive shaft with 1 3/8” 20 spline yoke and fitted with friction plate clutch
    • 200hp single speed gearbox

    ROTOR

    • Rotor Speeds:
      • Standard: 359 rpm at 1000 rpm PTO
      • Optional: Additional gears for other speeds available as an option
    • Front square tube: 80mm x 120mm x 6mm
    • Tapered roller bearings on all rotor output shafts for durability and heavy duty operations

    OPTIONS

    Optional packer roller
    • Optional packer roller
    Optional spiked roller
    • Optional spiked roller
    Optional stone protection kit
    • Optional stone protection kit



    Optional front wheel track eradicator
    • Optional front wheel track eradicator
    • Supplemental gears for additional rotor speeds
    • Increase for drive shaft with automatic torque limiter

    SPECIFICATIONS

    Kratos 3000
    Kratos 3500
    Kratos 4000
    Working Width (m)
    Overall Width (m)
    3.11
    3.60
    4.10
    No. of Blades
    12
    14
    16
    Weight (kg)*
    1700
    1980
    2200
    Tractor Power (hp)
    90- 200
    120-200
    140-200

    * Weight is for unit fitted with rear packer roller.

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
