Tough and versatile, the Falc Agila, with its 120hp gearbox, high clearance body and large material intake, will comfortably handle pasture topping or the mulching of vegetables, potatoes,orchard and vineyard prunings as well as cover crops. Available in working widths from 1.6m to 3m, and with a choice of skids, rear roller or dual wheel height control.

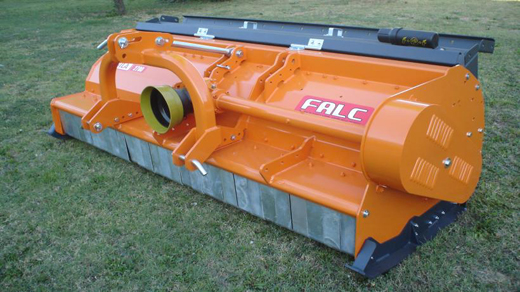

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE AGILA MULCHER & SHREDDER

CONSTRUCTION

• High profile design with 5mm body plate, 2.5mm replaceable wear and tear sheet and 8mm side plates.
• Strong, fabricated headstock.
• High clearance material intake.
• Dual position, 3pt linkage clevis mounting with Category 2 pins.

• Offsetting:
• 1600 to 1800 can be offset 300mm to the RHS.
• 2100 to 3000 can be offset 425mm to the RHS.

• Adjustable tie rod for headstock support.

TRANSMISSION

• 540 rpm PTO.
• Gearboxes:
• 100hp gearbox fitted to the1600, 1800 & 2100 models.
• 120hp gearbox fitted to the 2300, 2500, 2700 & 3000 models.
• Internal free-wheeling clutch fitted to both gearboxes.

• Drive shaft with 1 3/8” 6 spline yoke.
• ‘V’ belt side drive: 3 x belts on 1600-1800 & 4 x belts on 2100-3000.

ROTOR AND FLAILS

• Rotor Tube:
• Ø159mm with 10mm wall thickness on 1600 to 2100.
• Ø193.7mm with 10mm wall thickness on 2300 to 3000.
• Rotor Speeds:
• 2132 rpm on 1600-2500.
• 1910 rpm on 2700-3000.

• Hammer Tip Speeds:
• 64m/sec on the 1600-2100 models.
• 68m/sec on the 2300-2500 models.
• 61m/sec on the 2700-3000 models.
• ‘Y’ flails & smooth comb counter-blade. (Hammer or Spatula flails are optional).

SAFETY

• Complies with all CE (European) safety standards.
• Adjustableand removable rear doors for control of material ejection and for ease of maintenance.
• Steel front safety flaps across the full intake width.
• Fully guarded ‘Vee’ belts, drive shaft and clutch.

HEIGHT CONTROL

• Standard fitment:
• Dual adjustable skids on 1600-1800,
• Dual fixed skids & rear roller (193.7mm x 5mm) on 2100-2500,
• Dual fixed skids &dual pneumatic wheels on 2700-3000.

BROCHURE

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
