The Falc BS series Rotary Hoes provide a robust and versatile option for both hobby and professional farmers who require a general purpose, light to medium duty rotary hoe to suit a 50hp tractor. Working widths range from 0.90m up to 1.65m.

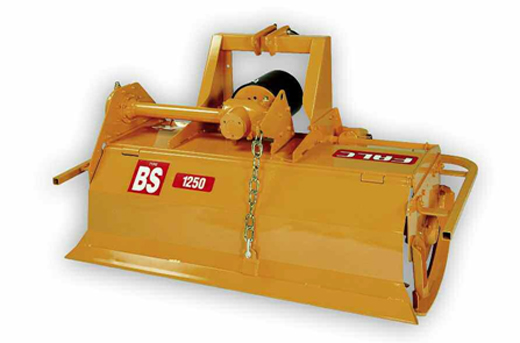

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE BS SERIES ROTARY HOE

CONSTRUCTION

• Modular frame with squarefront support tube for strength and the mounting of the tractor attachment brackets
• Strong, fabricated headstock
• 3pt linkage mounted with clevis hitch and Category 1 & 2 pins on the lower brackets
• Centrally mounted or adjustable to 100mm offset to the RH side
• Chain adjustable rear trailing board for tilth control

TRANSMISSION

• 540 rpm PTO
• Drive shaft with 1 3/8” 6 spline yoke and fitted with friction plate safety clutch
• 50hp, single speed gearbox
• Chain side-drive (liquid grease lubricated)

ROTOR AND BLADES

• 250 rpm rotor speed
• 2 blade rotor pattern i.e. 2 x LH & 2 x RH blades per flange
• ‘C’ shaped (Speed) blades fitted as standard

SAFETY

• Complies with all CE (European) safety standards
• Fully covered drive shaft, clutch and gearbox input shaft
• Front and side protection bars to prevent operator or by stander contact with moving parts
• Rear trailing board protects against contact with the blades and the rotor from the rear of the machine
• Front mounted parking stand

DEPTH CONTROL

• Left hand and right hand adjustable depth control skids.

BROCHURE

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
