Falc 40-100 hp Rotary Hoe
  • Call our product specialists
    Parts Service Sales
  • Find a Dealer
  • View Falc Specials
  • Review us on Google
  • Falc Italian made agricultural machinery includes rotary hoes to 350hp and shredders and mulchers to 400hp for full strength farming in Australia.

    Falc Farm Machinery

    D Series Rotary Hoe

      Loading...

    Whether you’re preparing ground after ploughing, burying crop residue or stubble, breaking up established pasture or simply forming a seedbed for planting your next crop, the Falc D series Rotary Hoe is the ideal tool. Robustly built and with a 100hp capacity gearbox, the D series is available in cultivating widths from 1.6m to 2.5m and with a range of options to provide extra versatility.

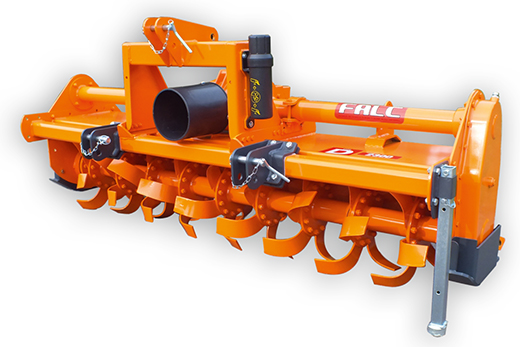

    Falc D Series Rotary Hoe

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE D SERIES ROTARY HOE

    CONSTRUCTION

    D Series Construction
    • Modular frame with 80mm x 80mm x 6mm square front support tube for rigidity and for the mounting of the tractor attachment brackets.
    • Strong, fabricated headstock.
    • 3pt linkage mounting with adjustable clevis hitches and Category 2 pins.
    • Coiled spring adjusters on the rear trailing board for tilth control.

    TRANSMISSION

    D Series Transmission
    • 540 rpm PTO.
    • Drive shaft with 1 3/8” 6 spline yoke and fitted with friction plate safety clutch.
    • 100hp, four speed gearbox.
    • Gear side-drive(liquid grease lubricated)

    ROTOR AND FLAILS

    D Series Rotor and Flail
    • Rotor Speeds:
      • Standard:169, 195, 238 & 276 rpm.
      • Optional: 313 & 361 rpm.
    • ‘L’ shaped blades fitted as standard.
    • 3 blade rotor pattern i.e. 3 x LH & 3 x RH blades per flange as standard.

    SAFETY

    D Series Safety
    • Complies with all CE (European) safety standards.
    • Fully covered drive shaft, clutch and gearbox input shaft.
    • Rear trailing board protects against contact with the blades and the rotor from the rear of the machine.
    • Front mounted parking stand.

    DEPTH CONTROL

    D Series Depth Control
    • Standard fitment:
      • LH & RH adjustable side skid depth control.

    OPTIONS

    D Series Optional Rear Rotoking (5 pike) Rotor
    • Optional rotors: "Rotoking" (spike) for hard, dry soils
    D Series Optional RearTerraking (Anti-pan) Rotor
    • Optional rotors: "Terraking" (Anti-pan) rotor for improved seedbeds in secondary tillage applications.
    D Series Optional Rear Pneumatic Wheels
    • Optional depth control: Dual rear pneumatic wheels
    D Series Optional Cage Roller
    • Optional depth control: Cage roller
    D Series Optional Packer Roller
    • Optional depth control: Packer roller
    D Series Optional Spiked Roller
    • Optional depth control: Spiked roller
    D Series Optional Wheel Track Eradicator
    • Optional attachments: Wheel track eradicator
    D Series Optional Front Discs
    • Optional attachments: Front discs

    SPECIFICATIONS

    D 1600
    D 1800
    D 2100
    D 2300
    D 2500
    Working Width (m)
    1.58
    1.82
    2.07
    2.31
    2.56
    Overall Width (m)
    1.75
    1.99
    2.23
    2.48
    2.72
    No. of Blades
    36
    42
    48
    54
    60
    Weight (kg)
    540
    590
    640
    700
    740
    Tractor Power (hp)
    40-100
    50-100
    60-100
    70-100
    80-100

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
