Falc’s FL Series is a robustly built rotary hoe with a 3.0m working width and a 140hp, single speed gearbox. With a gear drive transmission, optional rotor types and a choice of depth control mechanisms, this model will readily satisfy the requirements of both contractors and professional farmers.
Seedbed preparation, primary or secondary tillage, or the incorporation of trash, residues or fertilisers into the soil are all within the capabilities of the FL series.

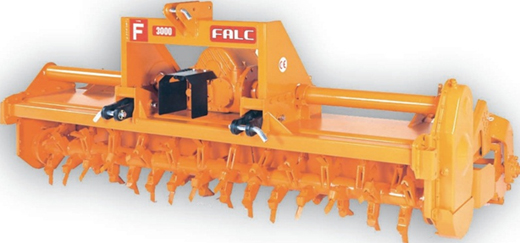

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE FL SERIES ROTARY HOE

CONSTRUCTION

• Modular frame with 80mm x 80mm x 6mm square front support tube for rigidity and for the mounting of the tractor attachment brackets and ancillary equipment.
• Strong, fabricated headstock.
• 3pt linkage mounting with floating clevis hitches and Category 2 pins.
• Coiled spring adjusters on the rear trailing board for tilth control.

TRANSMISSION

• 1000 rpm PTO.
• Drive shaft with 1 3/8” 6 spline yoke and fitted with an automatic torque limiter clutch.
• 140hp, single speed gearbox.
• Gear side-drive(liquid grease lubricated).

ROTOR AND BLADES

• Rotor Speeds:
• Standard: 268 rpm @ 1000 rpm PTO.
• Optional: 329, 307 & 217 rpm @ 1000 rpm PTO.
• ‘L’ shaped blades fitted as standard.
• 3 blade rotor pattern i.e. 3 x LH & 3 x RH blades per flange as standard.

SAFETY

• Complies with all CE (European) safety standards.
• Fully covered drive shaft, clutch and gearbox input shaft.
• Rear trailing board protects against contact with the blades and the rotor from the rear of the machine.
• Front mounted parking stand.

DEPTH CONTROL

• Standard fitment:
• LH & RH adjustable side skid depth control.

OPTIONS

• Optional rotors: "Rotoking" (spike) for hard, dry soils

• Optional rotors: "Terraking" (Anti-pan) rotor for improved seedbeds in secondary tillage applications.

• Optional depth control: Dual rear pneumatic wheels

• Optional depth control: Cage roller

• Optional depth control: Packer roller

• Optional depth control: Spiked roller

• Optional attachments: Wheel track eradicator

• Optional attachments: Front discs

BROCHURE
