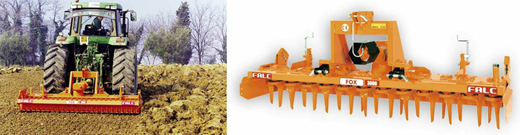

Photograph for illustration purposes - standard specifications may not match those shown.

• 3pt linkage, centrally mounted
• Floating clevis hitch with Cat 2 pins (Cat 2/3 pins on the 3500 & 4000)
• Drive shaft with 1 3/8" 6 spline yoke and fitted with friction plate clutch
• 140 hp, single speed gearbox
• Rotor speeds of: 348 rpm at 540 rpm PTO or 362 rpm at 1000 rpm PTO (Additional gears for other speeds available as an option)
• Front square tube 80mm x 80mm x 6mm on 2500 & 3000 and 80mm x 120mm x 6mm on 3500 & 4000
• Tapered Roller Bearings on all rotor output shafts
• Quick release tynes
• Rear PTO shaft for ancillary equipment
• Rear levelling bar with manual 'screw' type adjustment system
• Round tyne mounting flange (to which an optional stone protector can be fitted)
• Depth control via 8 tube Cage Roller
• Side protection shields
• Full CE safety guarding on all models

BROCHURE
