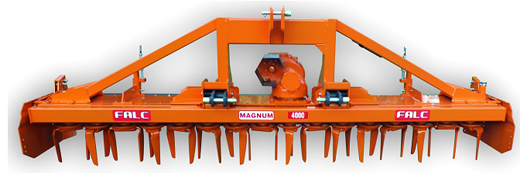

Photograph for illustration purposes - standard specifications may not match those shown.

• 3pt linkage, centrally mounted
• Floating clevis hitch with Cat 2/3 pins
• Drive shaft with automatic torque limiter (1 3/8" 6 spline yoke on 3000 and 1 3/8" 21 spline yoke on 3500-5000)
• 240 hp, single speed gearbox
• Rotor speed: 365 rpm at 1000 rpm PTO (Additional gears for other speeds available as an option)
• Tapered Roller Bearings on all rotor output shafts
• Quick release tynes
• Front square tube 80mm x 120mm x 6mm
• Rear PTO shaft for ancillary equipment
• Rear levelling bar with manual 'screw' type adjustment system
• Round tyne mounting flange (to which an optional stone protector can be fitted)
• Full CE safety guarding on all models
• Depth control via 8 Tube Cage Roller
• Side protection shields
