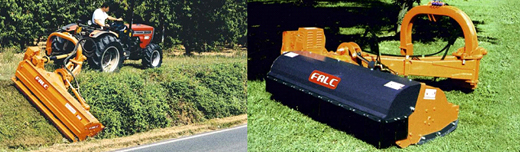

Photograph for illustration purposes - standard specifications may not match those shown.

• Rear, 3pt linkage, clevis mounted
• Left hand offset (Right hand offset is available on request)
• 540 rpm PTO
• Drive shaft with 1 3/8” 6 spline yoke
• Side drive: 4 x SPB ‘V’ belts
• 120hp gearbox fitted with an internal free wheeling clutch
• Mechanical break-back device with automatic re-set for protection when an obstacle is encountered
• 4mm body plate with 2.5mm wear and tear sheet
• Rotor and rear roller bearing housings are fabricated from machined steel
• Rotor tube: ∅193.7mm x 8mm & dynamically balanced
• Height control via rear roller, braced by a rigid steel bar
• Rear roller tube: ∅168mm x 5mm
• Hydraulic adjustment of both tilt and offset
• Rear, adjustable door
• Headstock dimensions: 120mm x 80mm x 10mm
• Pivot points with self-lubricating bushes
• Hammer flails secured with 25mm diameter pins
• Operating angles from 60 degrees down to 90 degrees up
• Tractor requires dual hydraulic remote couplings
• Minimum tractor weights: 2,700kg (1800 model) & 2,900kg (2100 model)
• Minimum tractor wheel track: 1.8m (1800 model) & 2.1m (2100 model)
• Full CE safety guarding

BROCHURE

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
