    Smart 140 hp Power Harrow

      Loading...

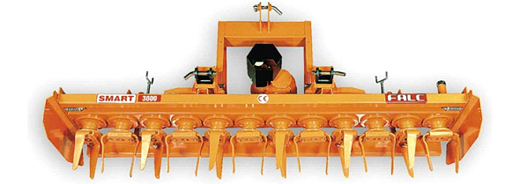

    Falc Smart Power Harrow

    Photograph for illustration purposes - standard specifications may not match those shown.

    • 3pt linkage, centrally mounted
    • Floating clevis hitch with Cat 2 pins (Cat 2/3 pins on the 3500 & 4000)
    • Drive shaft with 1 3/8" 6 spline yoke and fitted with friction plate clutch
    • 140 hp, single speed gearbox
    • Rotor speeds of: 348 rpm at 540 rpm PTO or 362 rpm at 1000 rpm PTO (Additional gears for other speeds available as an option)
    • Front square tube 80mm x 80mm x 6mm (2500 & 3000) and 80mm x 120mm x 6mm (3500& 4000)
    • Tapered Roller Bearings on all rotor output shafts
    • Quick release tynes
    • Rear PTO shaft for ancillary equipment
    • Rear levelling bar with manual 'screw' type adjustment system
    • Round tyne mounting flange (to which an optional stone protector can be fitted)
    • Full CE safety guarding on all models
    • Depth control via 8 Tube Cage Roller
    • Side protection shields

    SPECIFICATIONS

    SMART 2500
    SMART 3000
    SMART 3500
    SMART 4000
    Working Width (m)
    2.50
    2.99
    3.48
    3.98
    Overall Width (m)
    2.59
    3.09
    3.61
    4.09
    No. of Rotors
    10
    12
    14
    16
    Weight (kg)
    1110
    1310
    1530
    1960
    Tractor Power (hp)
    80-140
    90-140
    100-140
    120-140

    BROCHURE

    Click this link to download a brochure.
    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the  manufacturer's website (Falc)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
