    TLF 120hp Flail Verge Mower

      Loading...

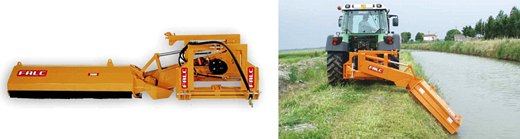

    Falc TLF Flail Verge Mower

    Photograph for illustration purposes - standard specifications may not match those shown.

    • Reinforced 3 point linkage with Cat 1 & 2 clevis mounting
    • Left hand offset. (Right hand offset is available on request)
    • 4mm body plate with replaceable 2.5mm wear and tear sheet
    • 540 rpm PTO standard on 1600 & 2000 models (1000 rpm available by inverting the drive pulleys)
    • 1000 rpm PTO only on the 2500 model
    • Drive shaft fitted with a free wheeling clutch and 6 spline, 1 3/8” yoke
    • Side drive is via 5 x SPB ‘V’ belts. ( The TLF 2500 has SPB 3000/5 banded belts as standard)
    • Hydraulically operated lateral side shift to 60cm. Mechanical breakaway with automatic re-set
    • Hydraulic float system for contour following
    • Flexible coupling joint between gearbox and rotor to absorb shocks and vibrations
    • Lowering speed of the mower head adjustable via hydraulic valve
    • Height control by adjustable rear roller: 0 -125mm
    • 140mm dia. dynamically balanced rotor (10mm wall thickness)
    • Special, dual pivoting Boron steel blades
    • Capable of cutting from 90° above horizontal to 70° below
    • Low profile
    • Full CE safety guarding

    SPECIFICATIONS

    TLF 1600 LH
    TLF 2000 LH
    TLF 2500 LH
    Working Width (m)
    1.61
    1.97
    2.51
    Transport Width (m)
    1.92
    1.92
    1.92
    No. of Flails
    48
    60
    78
    Weight (kg)
    990
    1070
    1320
    Tractor Power (hp)
    70-120
    80-120
    90-120

    BROCHURE

    Click this link to download a brochure.
    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the  manufacturer's website (Falc)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
