Falc Italian made agricultural machinery includes rotary hoes to 350hp and shredders and mulchers to 400hp for full strength farming in Australia.

Falc Farm Machinery

RU Galvanised-Frame Rubber-Body Rotary Hoe


The FALC RU is rubber body rotary hoe for working in sticky soil conditions. The Heavy-duty Galvanised frame has strong front and rear toolbars for the attachment of various tool options. The heavy-duty drive line with 300 hp gearbox and simple shear-pin protection and chain-drive system is simple to operate and service.

Falc RU Rotary Tiller

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE RU ROTARY HOE

CONSTRUCTION

RU Construction
  • Galvanised frame and headstock
  • Rubber body and trailing board
  • Front tool bar 150 x 150mm with 10mm wall thickness in diamond section
  • Rear tool bar 100 x 100mm with 10mm wall thickness in square section
  • 3pt linkage mounted Cat III and 4-leg parking stand
  • Coiled spring adjusters on trailing board

TRANSMISSION

RU Chain Drive
  • Drive shaft with 1 3/4” 20 spline yoke
  • 1000rpm PTO 300hp, single speed Comer T-332A gearbox
  • Lateral drive shafts with quick-change shear pin protection system
  • Heavy-duty Wipperman 2 inch chain side drive

ROTOR

RU Rotor
  • Rotor Speeds:
    • Standard: 235rpm
    • Optional: 275 rpm.
  • ‘L’ shaped blades fitted as standard.
  • 6 blade rotor on 18mm flanges with waterproof rotor seals

SAFETY

  • Full CE safety guarding

DEPTH CONTROL

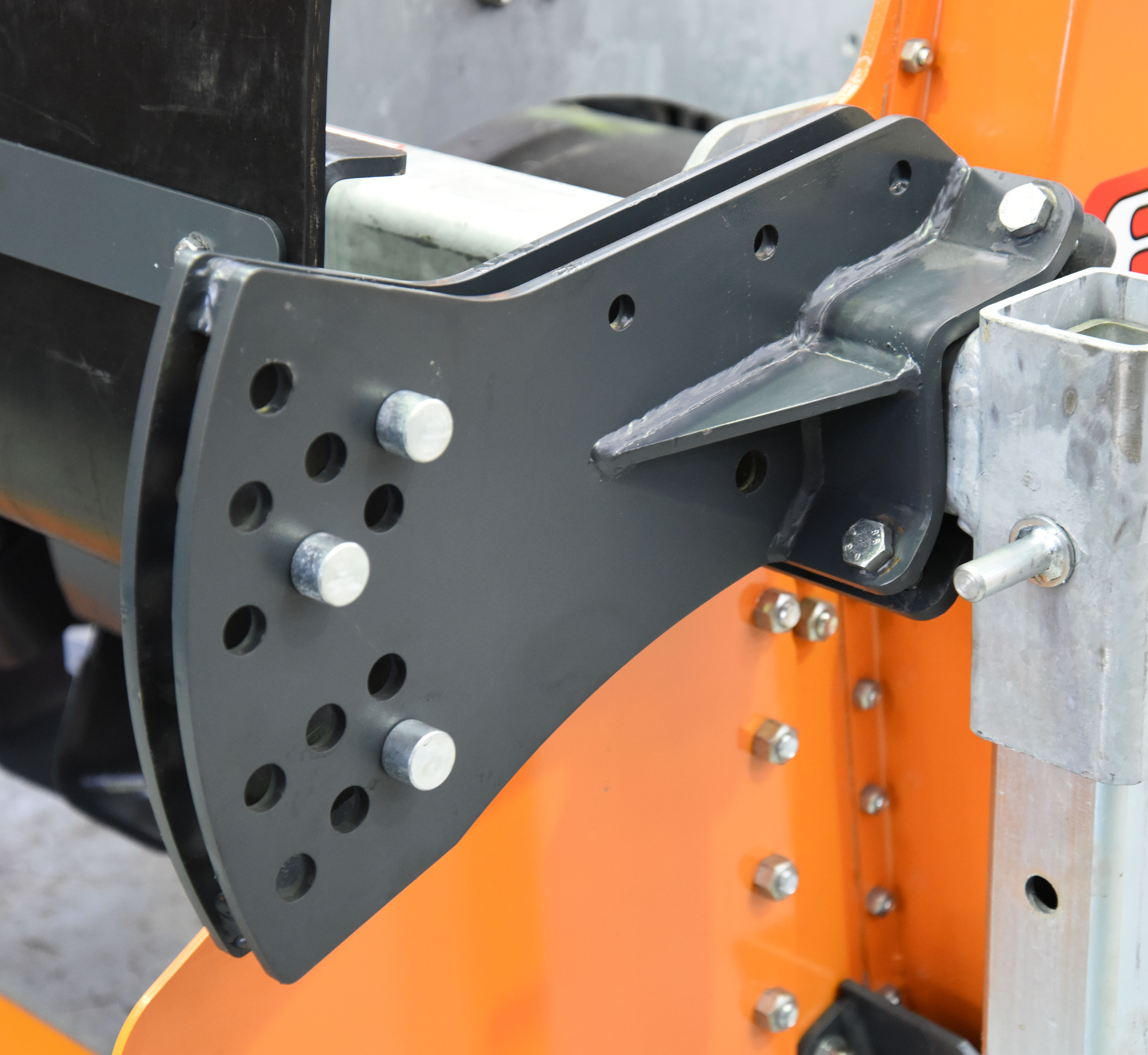

RU Depth Adjustment
  • Depth control by optional 600mm diameter 12-tube cage roller with quick pin adjustment

OPTIONS

Optional cage roller
  • Optional cage roller
Optional rear rubber wheels
  • Optional rear rubber wheels



Optional oil cooler
  • Optional oil cooler



Optional ripper leg
  • Optional front tool bar mounted ripper leg (left hand or right hand)

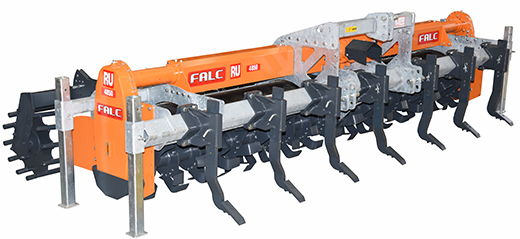

RU Galvanised-Frame Rubber Body Rotary Hoe

SPECIFICATIONS

RU 3100
RU 3600
RU 4100
RU 4600
RU 4850
RU 6100
Working Width (m)
3.115
3.615
4.115
4.615
4.865
6.322
Overall Width (m)
3.771
4.271
4.771
5.271
5.521
No. of Blades
72
84
96
108
120
144
Weight (kg)
1880
2060
2430
1640
2700
Tractor Power (hp)
180- 330
180- 330
180- 330
180- 330
180-330
180- 330

BROCHURE

Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
